Power Integrations TOP242-250 TOPSwitch-GX Family Application Note

The document describes the features and characteristics of the TOP242-250 TOPSwitch-GX family, including extended power range, no heatsink required, integrated soft-start, programmable current limit, etc.

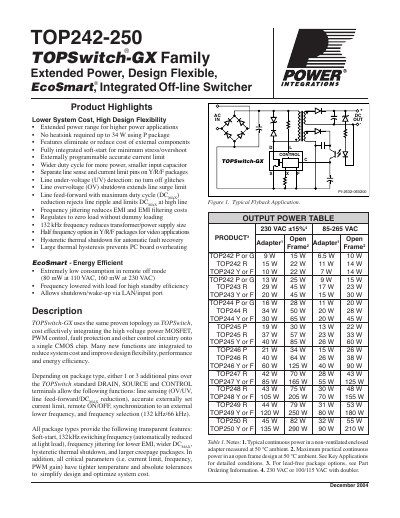

Power Integrations TOP242-250 TOPSwitch-GX Family Application Note - cover page
Brand
Power
Category
Power Management
Document type
Application Note
Language
Chinese
Pages
52
File format
PDF
File size
2.1 MB
Published
10 May, 2012
Updated
29 September, 2023
MD5 checksum
81EC4AA48A1DF82CD2A13985F5E42C7F

About this manual

The document provides an overview of the TOP242‑250 TOPSwitch‑GX family, a flexible off‑line switcher IC that integrates a high‑voltage MOSFET, PWM control, fault protection and a range of programmable functions. It highlights design benefits such as extended power range, no‑heatsink operation up to 34 W, integrated soft‑start, external current‑limit programming, wide duty‑cycle, line‑sense capabilities and energy‑saving EcoSmart features.

Detailed sections describe the functional block diagram, pin assignments, oscillator operation, pulse‑width modulation, light‑load frequency reduction, error‑amplifier behavior, on‑chip current limiting, line‑under‑voltage detection and other protection mechanisms. Application examples and design checklists help engineers implement high‑efficiency flyback power supplies using the TOPSwitch‑GX devices. This manual is written in Chinese.
