The document describes the features and characteristics of the 2 AMP Positive Step-Down Integrated Switching Regulator produced by Power Trends, Inc., including high efficiency, wide input range, self-contained inductor, short-circuit protection, over-temperature protection, and fast transient response.

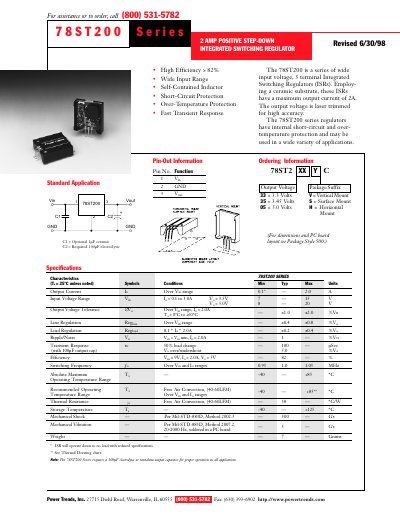

The document describes the Power Trends 78ST200 Series, which consists of wide input voltage, three-terminal Integrated Switching Regulators (ISRs). These devices utilize a ceramic substrate and feature a maximum output current of 2A. The output voltage is laser trimmed for high accuracy.
| Output Current | 2.0 A |
|---|---|
| Input Voltage Range (Vo = 5V) | 8 to 20 V |
| Switching Frequency | 1.0 MHz |
The maximum output current for the 78ST200 series is 2A.
Yes, it features a self-contained inductor.
