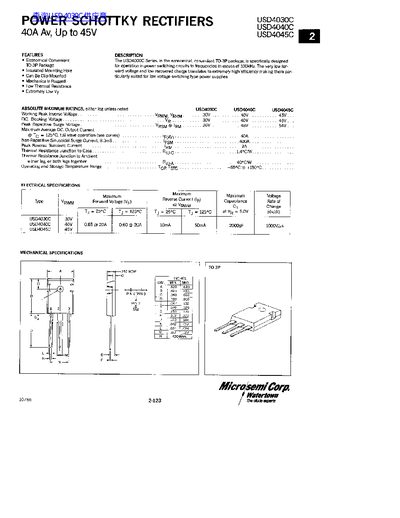

The USD4030C, USD4040C, and USD4045C are Schottky rectifiers offered in a TO‑3P package for high‑frequency power switching applications. They feature low forward voltage, low thermal resistance, and a rugged mechanical design suitable for clip‑mounting.
Key specifications include peak inverse voltages of 30 V, 40 V and 45 V respectively, average output currents up to 0.65 A (USD4040C) at 208 V, operating temperature range from –55 °C to +150 °C, and a maximum repetitive surge current of 400 A.
| Peak Inverse Voltage (USD4030C) | 30 V |
|---|---|
| Peak Inverse Voltage (USD4040C) | 40 V |
| Peak Inverse Voltage (USD4045C) | 45 V |
| Average Output Current (USD4040C) | 0.65 A @ 208 V |
| Maximum Repetitive Surge Current | 400 A |
The USD4030C is rated for a peak inverse voltage of 30 V.
The devices can handle a repetitive surge current of up to 400 A.
The USD4040C provides an average output current of 0.65 A at 208 V.
