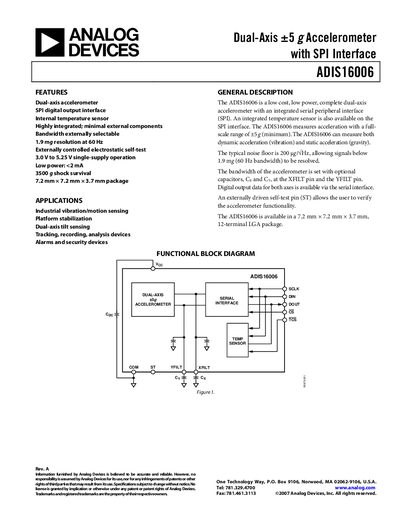

The ADIS16006 is a low cost, low power, complete dual-axis accelerometer with an integrated serial peripheral interface (SPI). An integrated temperature sensor is also available on the SPI interface. The ADIS16006 measures acceleration with a full-scale range, high precision, bandwidth selectable to 1.9 mg resolution at 60 Hz, low power: <2 mA, 3500 g shock survival, 7.2 mm × 7.2 mm × 3.7 mm package.
The ADIS16006 is a low‑cost, low‑power dual‑axis accelerometer with a +5 g full‑scale range and an SPI digital interface. It includes an integrated temperature sensor and offers selectable bandwidth via external capacitors. The device operates from a single 3.0‑5.25 V supply and consumes less than 2 mA in normal mode.
The datasheet provides complete electrical specifications, timing diagrams, pin descriptions, absolute maximum ratings, and typical performance curves. It also includes mechanical dimensions, assembly guidelines, and ordering information for the 12‑terminal LGA package.
| Measurement Range | +5 g |
|---|---|
| Sensitivity (typical) | 242‑272 LSB/g |
| Noise Density | 200 µg/√Hz (25 °C) |
| Operating Voltage Range | 3.0 V to 5.25 V |
| Quiescent Supply Current | 1.5 mA to 1.9 mA |
| Power‑Down Current | 1.0 mA |
| Package Dimensions | 7.2 mm × 7.2 mm × 3.7 mm (LGA) |
| Operating Temperature Range | -40 °C to +125 °C |
The device operates from 3.0 V to 5.25 V.
The noise density is 200 µg/√Hz at 25 °C.
Apply a logic high to the ST pin, which simulates a nominal 0.75 g test input.
The ADIS16006 can survive up to 3500 g shock on any axis.
