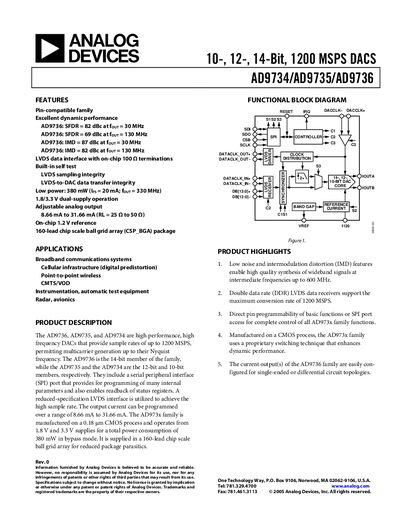

AD9734/AD9735/AD9736 are 10-, 12-, and 14-bit 1200 MSPS DACs with excellent dynamic performance and adjustable analog output. They feature an LVDS data interface and built-in self test, and are suitable for applications such as broadband communications systems, cellular infrastructure, point-to-point wireless, and test equipment.
The AD973x family (AD9734, AD9735, AD9736) are high‑performance, high‑frequency DACs offering sample rates up to 1200 MSPS and output currents programmable from 8.66 mA to 31.66 mA. They target broadband communications, cellular infrastructure, radar, avionics, and test equipment.
The handbook contains detailed functional block diagrams, pin configurations, DC/AC/Digital specifications, SPI register maps, and performance charts such as SFDR, INL/DNL, and power consumption. It also includes application notes, evaluation board schematics, and ordering information.
| Resolution | 14‑bit (AD9736), 12‑bit (AD9735), 10‑bit (AD9734) |
|---|---|
| Maximum Sample Rate | 1200 MSPS |
| Power Consumption (FIR Bypass, 1× mode) | 380 mW |
The AD973x family supports a maximum update rate of 1200 MSPS.
The family includes a 14‑bit (AD9736), 12‑bit (AD9735), and 10‑bit (AD9734) DAC.
In FIR bypass (1×) mode the device consumes 380 mW.
