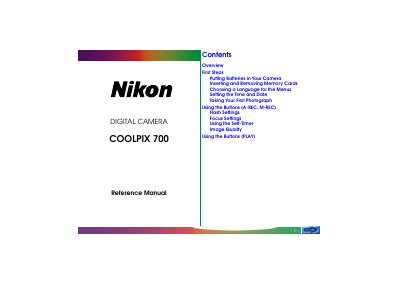

This is the COOLPIX 700 digital camera reference manual, introducing the camera's usage methods, features, etc.
This Reference Manual explains how to use and care for the COOLPIX 700 digital camera. It covers first‑step procedures such as inserting batteries and memory cards, selecting language, setting the date and time, and taking your first photographs. Detailed sections describe the camera menus, flash and focus settings, self‑timer, image quality options, playback functions, and connections to a TV or computer.
Later chapters provide specifications of the camera’s sensor, lens, shutter, and power requirements, as well as a comprehensive list of error messages and troubleshooting steps. The manual also includes cleaning, storage, and accessory information to help keep the camera in good condition.
| Type | digital camera |
|---|---|
| Image sensor | high-density 1/2" CCD |
| Effective pixel count | 1.92 million pixels |
| Image size | 1,600 × 1,200 (full), 640 × 480 (VGA) |
| Lens | Nikkor aspherical glass lens, f=6.5 mm, F2.6 |
| Shutter speed | 8–1/750 sec |
| ISO sensitivity | ISO 80 equivalent |
| Power source | four AA 1.5 V batteries |
| Dimensions | 114 mm × 67 mm × 38.5 mm |
| Weight | ≈ 270 g |
Turn the camera off, open the battery cover, insert the batteries with the positive (+) and negative (‑) poles aligned, then close the cover.
Open the menu, highlight FORMAT, and press the shutter‑release button to format the card, which erases any existing data.
Enter PLAY mode, press MENU, go to SET UP, select LANGUAGE, and choose the desired language.
