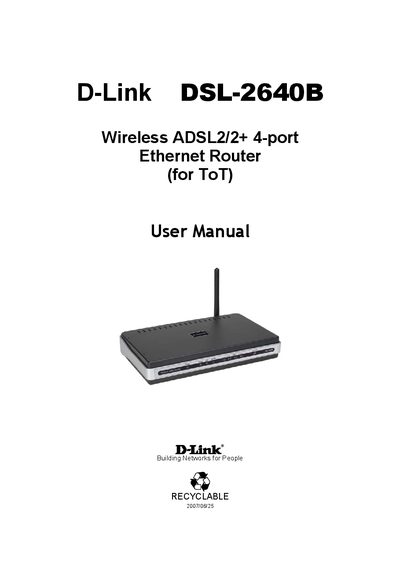

D-Link DSL-2640B Wireless ADSL2/2+ 4-port Ethernet Router User Manual

This document is about the D-Link DSL-2640B Wireless ADSL2/2+ 4-port Ethernet Router (for ToT) user manual

Brand: D-Link
Category: Router
Document type: User Manual
Language: English
Pages: 85
File format: PDF
File size: 3.6 MB
Published: 08 May, 2012
Updated: 30 September, 2023
Model: DSL-2640B
MD5 checksum: F38CBF3EC7BCBD4C1DFB29087E3F60B9
PDF: D-Link DSL-2640B Wireless ADSL2/2+ 4-port Ethernet Router User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring the D-Link DSL‑2640B wireless ADSL2/2+ router. It covers safety precautions, hardware connections, web‑based configuration, and advanced features such as wireless settings, QoS, and ADSL diagnostics.

Key sections include hardware overview, connecting the telephone, Ethernet and power cables, accessing the router’s web interface (http://192.168.1.1, admin/tot), and troubleshooting tools like the ADSL BER test.

What's inside

General Information
Package Contents
Important Safety Instructions
Front Panel View
Back Panel View
Connecting the Router to Your Computer
Configuring the Router
Wireless Settings
Routing
ADSL BER Test

Specifications

Number of LAN ports	4
Supported ADSL standard	ADSL2+
Maximum ADSL connection speed (BER test example)	8000 Kbps
Power source	External power adapter (surge protected)

Frequently asked questions

How can I reset the router to factory defaults?

Press the Reset button for 3 seconds or more to revert to factory settings.
