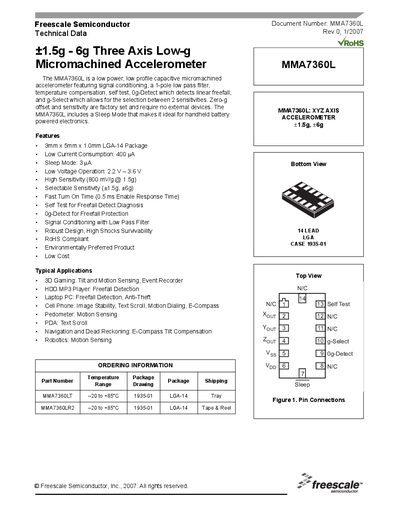

This document introduces the technical specifications of Freescale Semiconductor MMA7360L low power three-axis low-g micromachined accelerometer, mainly including product characteristics, functional features, typical applications, etc.
The MMA7360L is a low‑power, low‑profile three‑axis capacitive accelerometer with selectable 1.5 g or 6 g sensitivity, built‑in low‑pass filter, self‑test, and free‑fall detection. It operates from 2.2 V to 3.6 V and includes a sleep mode that reduces current to a few microamps, making it suitable for battery‑powered handheld devices.
Typical applications include 3‑D gaming motion sensing, hard‑disk protection, anti‑theft laptops, cell‑phone image stabilization, pedometers, navigation, and robotics. The device is supplied in a 14‑lead LGA package and is RoHS compliant.
| Supply Voltage | 0.3 V – 3.6 V |
|---|---|
| Supply Current (typ) | 400 µA |
| Supply Current (max) | 600 µA |
| Sleep Mode Current | 3 µA typ |
| Operating Temperature Range | -20 °C – +85 °C |
| Maximum Acceleration | +5000 g |
| Bandwidth (X/Y axes) | 400 Hz |
| Bandwidth (Z axis) | 300 Hz |
| Output Impedance | 32 kΩ |
| Package | 14‑lead LGA, 3 mm × 1.5 mm × 1.0 mm |
The device operates from 0.3 V up to 3.6 V.
In Sleep Mode the typical current consumption is 3 µA.
The g‑Select pin selects between 1.5 g (800 mV/g) and 6 g (200 mV/g) sensitivity.
