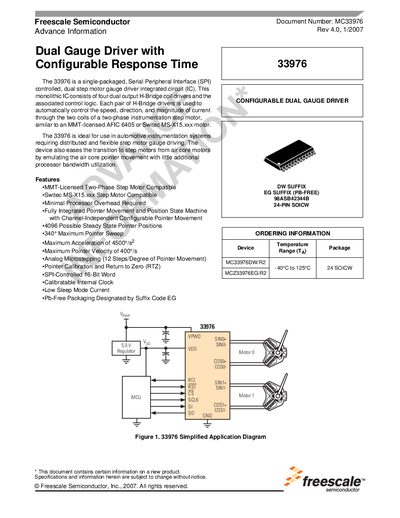

This document introduces the MC33976 single chip integrated circuit, including its main characteristics and functions.
The MC33976 is a single‑packaged, SPI‑controlled dual step‑motor gauge driver IC. It integrates four dual‑output H‑Bridge drivers and control logic to drive two‑phase instrumentation step motors, offering up to 4096 steady‑state pointer positions and a maximum pointer sweep of 340°.
The document provides detailed pin definitions, ordering information, maximum and static electrical characteristics, dynamic timing parameters, and revision history for designers implementing the device in automotive instrumentation and other applications.
| Maximum Pointer Velocity | 400°/s |
|---|---|
| Maximum Pointer Acceleration | 4500°/s² |
| Operating Junction Temperature | -40 to 150 °C |
| Storage Temperature Range | -55 to 150 °C |
| Input Pin Voltage Range | -0.3 to 7.0 V |
| Package Type | 24‑pin SOICW |
The MC33976 can achieve a maximum pointer speed of 400°/s.
The device supports a maximum pointer acceleration of 4500°/s².
Input pins operate from –0.3 V to 7.0 V.
It is supplied in a 24‑pin SOICW package.
