LP2986 is a high-performance 200mA precision LDO regulator from Nati. It features ultra-low dropout (180mV@200mA load), low quiescent current (1µA@1mA load), and can provide 3.3V, 3.0V and 5.0V standard output voltages with 0.5% (A grade) and 1% (standard) output voltage accuracy.
The LP2986 is a 200 mA precision LDO regulator offering ultra‑low dropout voltage and low quiescent current. It is available in SO‑8 and mini‑SO‑8 surface‑mount packages and can be configured for fixed 5.0 V, 3.3 V or 3.0 V outputs with 0.5 % accuracy (A‑grade).

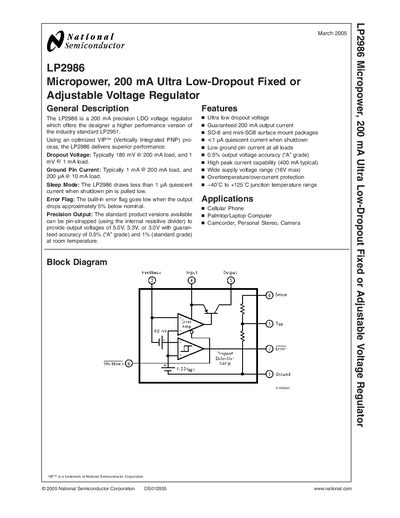

The datasheet provides detailed electrical characteristics, absolute maximum ratings, typical performance curves, ordering information, and mechanical dimensions, as well as safety and compliance notes for life‑support and banned‑substance policies.
| Dropout Voltage (typical) | 180 mV @ 200 mA load |
|---|---|
| Ground Pin Current (typical) | 1 mA @ 200 mA load |
| Sleep Mode Quiescent Current | < 1 yA (shutdown pin low) |
| Output Voltage Accuracy (A‑grade) | 0.5 % at room temperature |
| Peak Output Current (typical) | 400 mA |
| Supply Voltage Range | Up to 16 V |
| Operating Temperature Range | -40 °C to +125 °C |
| Maximum Continuous Output Current | 200 mA (guaranteed) |
| Available Output Voltages | 5.0 V, 3.3 V, 3.0 V |
| Package Types | SO‑8 and mini‑SO‑8 surface‑mount packages |
The LP2986 typically drops 180 mV when delivering 200 mA.
In sleep mode it draws less than 1 yA when the shutdown pin is pulled low.
The device can be pin‑strapped to provide 5.0 V, 3.3 V, or 3.0 V outputs.
The regulator is rated for a junction temperature up to +125 °C.
