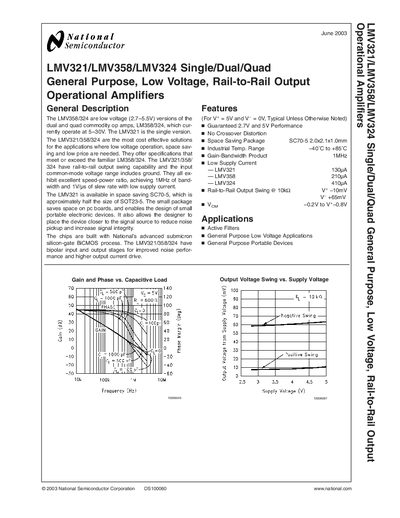

LMV321/LMV358/LMV324 Single/Dual/Quad General Purpose, Low Voltage, Rail-to-Rail Output Operational Amplifiers
The LMV321/LMV358/LMV324 family are low‑voltage (2.7 V – 5.5 V) single, dual, and quad operational amplifiers with rail‑to‑rail output swing. They are built on National's sub‑micron BICMOS process and feature bipolar input and output stages for low noise and higher drive capability.
The document provides absolute maximum ratings, electrical characteristics for 2.7 V and 5 V supplies, typical performance curves, package dimensions, and a life‑support policy notice. It is intended for designers of portable electronic devices and general‑purpose low‑voltage applications.
| Supply Voltage Range | 2.7 V – 5.5 V |
|---|---|
| Gain‑Bandwidth Product | 1 MHz |
| Supply Current (LMV321) | 130 pA (typical) |
The devices operate from 2.7 V up to 5.5 V.
The gain‑bandwidth product is specified as 1 MHz.
Typical supply current for the LMV321 is 130 pA.
