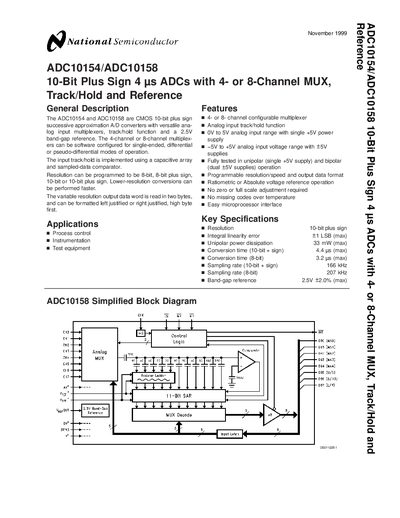

This datasheet provides detailed information on the ADC10154/ADC10158 10-bit plus sign 4 µs ADCs, including the 4- or 8-channel analog input multiplexers, track/hold function, and a 2.5V band-gap reference.
The ADC10154 and ADC10158 are CMOS 10‑bit plus‑sign successive‑approximation A/D converters featuring configurable 4‑ or 8‑channel analog multiplexers, a track/hold function, and an internal 2.5 V band‑gap reference. They support both unipolar operation with a single +5 V supply and bipolar operation with dual ±5 V supplies, and offer programmable resolution and output data formats.
Key features include a selectable input range (0‑5 V or ±5 V), fast conversion times (as low as 3.2 µs for 8‑bit mode), high sampling rates (up to 166 kHz for 10‑bit plus‑sign mode), and a fully tested design with no missing codes over temperature. The document provides detailed pin descriptions, electrical characteristics, timing diagrams, ordering information, and mechanical dimensions.
| Resolution | 10‑bit plus sign |
|---|---|
| Integral linearity error | +1 LSB (max) |
| Unipolar power dissipation | 33 mW (max) |
| Conversion time (10‑bit + sign) | 4.4 µs (max) |
| Conversion time (8‑bit) | 3.2 µs (max) |
| Sampling rate (10‑bit + sign) | 166 kHz |
| Band‑gap reference voltage | 2.5 V ±2.0 % (max) |
The maximum conversion time for 8‑bit mode is 3.2 µs.
The device includes an internal 2.5 V band‑gap reference with a tolerance of ±2.0 % (max).
Up to 166 kHz sampling rate is specified for 10‑bit plus‑sign mode.
