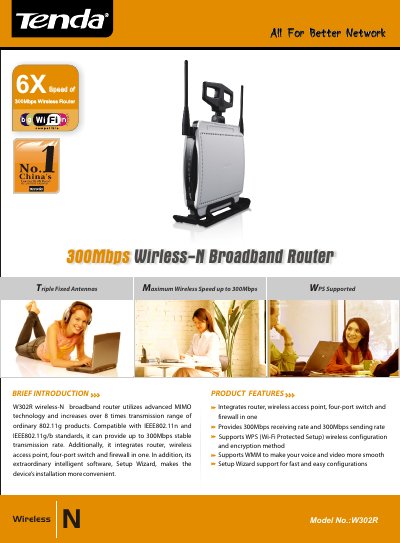

The W302R Wireless‑N broadband router uses MIMO technology to deliver up to 300 Mbps wireless speed and extends coverage compared with 802.11g devices. It combines a router, wireless access point, four‑port switch and firewall in a single unit, and includes a Setup Wizard for easy configuration.
Technical specifications include support for IEEE 802.11a/b/g/n standards, 2.4 GHz/5 GHz operation, three fixed omni‑directional antennas with 2.5 dBi gain, and security options such as WEP, WPA/WPA2 and WPS. The device offers one WAN port, four LAN ports, and a DC 12 V 1 A power supply.
| Connection type | PPPoE, Dynamic IP, Static IP, L2TP, PPTP |
|---|---|
| Encryption mode | 64/128‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK |
| Max Wireless Speed | Up to 300 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Interface | 1 WAN 10/100 Mbps, 4 LAN 10/100 Mbps, 1 power port |
| Antenna | 3 fixed omni‑directional antennas, 2.5 dBi gain |
| Power rating | DC 12 V 1 A |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 70 %–90 % RH non‑condensing |
It provides up to 300 Mbps for both receiving and sending.
Yes, it supports WPS (Wi‑Fi Protected Setup) for wireless configuration.
It comes with three fixed external omni‑directional antennas with 2.5 dBi gain.
