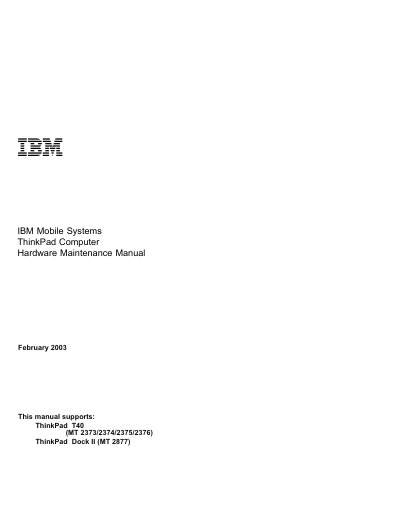

This document is the hardware maintenance manual for IBM ThinkPad T40 and its accompanying ThinkPad Dock II. It describes the features and characteristics of the products.
The IBM ThinkPad T40 Hardware Maintenance Manual provides detailed service information for the T40 notebook and its optional ThinkPad Dock II. It includes safety guidelines, FRU replacement strategies, diagnostic procedures, and a complete parts list for trained service personnel.
The manual also contains technical specifications such as processor options, memory configurations, storage capacities, and graphics details, along with safety notices in multiple languages and instructions for handling batteries and other components safely.
| Processor | Intel® Pentium®M 1.3 GHz, L2 512 KB cache (up to 1.6 GHz) |
|---|---|
| Bus architecture | 400 MHz Processor System Bus (PSB) |
| Standard memory | 256 MB DDR SDRAM SO‑DIMM (PC2100) |
| Maximum memory | 2 GB DDR SDRAM SO‑DIMM (PC2100) |
| Hard‑disk drive | 20 GB, 4200 rpm, 2.5‑inch IDE (optional 40 GB/80 GB) |
| Graphic memory | 16 MB DDR SDRAM (ATI M6‑C16h) |
Verify that all screws, springs, and small parts are correctly installed by shaking the computer and listening for rattling sounds.
Do not disassemble, recharge, expose to fire or water, or short‑circuit the battery; dispose of it according to local regulations and use only the listed replacement type.
Attempt a low‑level format of the drive before deciding to replace it.
