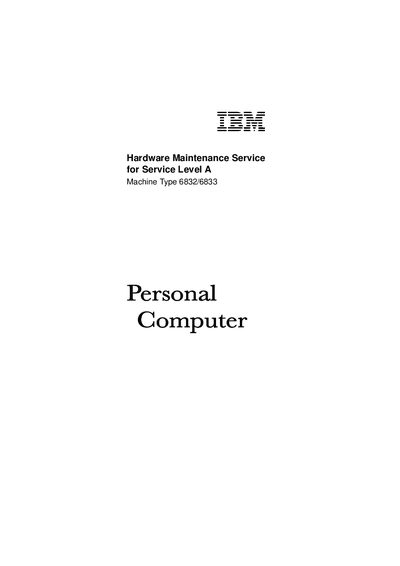

IBM 6832/6833 Service Level A Hardware Maintenance Service Manual

About this manual

The manual describes the hardware maintenance service for IBM Personal Computer models 6832 and 6833 at Service Level A. It includes safety information, voltage switch settings, battery replacement guidelines, and detailed procedures for troubleshooting, diagnostics, and component replacement.

The document contains a table of contents covering notices, safety information, system specifications, assembly instructions, parts catalogs, diagnostic aids, and appendices. It also provides detailed wiring diagrams, BIOS update procedures, and part number references for service technicians.

What's inside

• Notices
• Safety Information
• Voltage Switch Settings
• Battery Replacement
• Check Procedures
• Troubleshooting
• Diagnostic Aids
• System Board
• Parts Catalog
• Appendix

Frequently asked questions

What voltage switch setting should be used for a 100‑127 V power supply?

Set the voltage switch to 115 V for a 100‑127 V power range.

Which part number must be used when replacing the battery?

Use IBM Part Number 33F 8354 or an equivalent battery recommended by the manufacturer.
