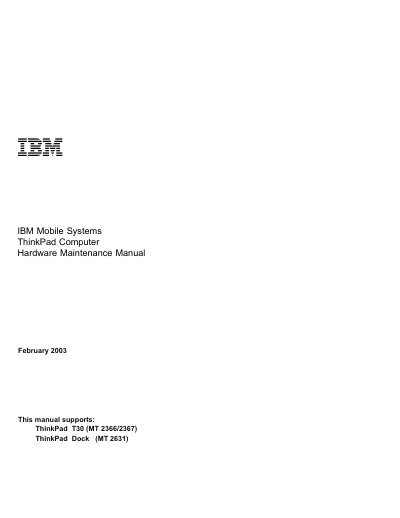

This manual describes the hardware maintenance of ThinkPad T30 and ThinkPad Dock
This manual supports the IBM ThinkPad T30 notebook (MT 2366/2367) and the compatible ThinkPad Dock (MT 2631). It contains safety notices, service information, and detailed procedures for diagnosing and repairing hardware components. The document is intended for trained service personnel and includes a comprehensive parts list, specifications, and troubleshooting indexes.
Key sections cover safety precautions, a strategy for replacing Field‑Replaceable Units (FRUs), error‑message interpretation, and step‑by‑step instructions for removing and installing components such as the battery pack, hard‑disk drive, and DIMM modules. The manual also provides a specifications table, status indicators, and a symptom‑to‑FRU index to aid rapid fault isolation.
| Processor | Mobile Intel® Pentium®4 processor - M 1.6 GHz, L2 512 KB cache |
|---|---|
| Standard memory | 256 MB DDR SDRAM SO‑DIMM (PC2100) |
| Maximum memory | 1024 MB DDR SDRAM (four 256 MB modules) |
| Bus architecture | 400 MHz PSB, HUB link, PCI bus, LPC bus |
| Graphic memory | 16 MB DDR SDRAM on the system board |
Standby batteries may contain nickel and cadmium; they must not be disassembled, recharged, exposed to fire or water, and must be disposed of according to local regulations.
Read the error codes displayed on the screen and start diagnosis with the first code; the first code often indicates the root cause and may also generate false codes.
