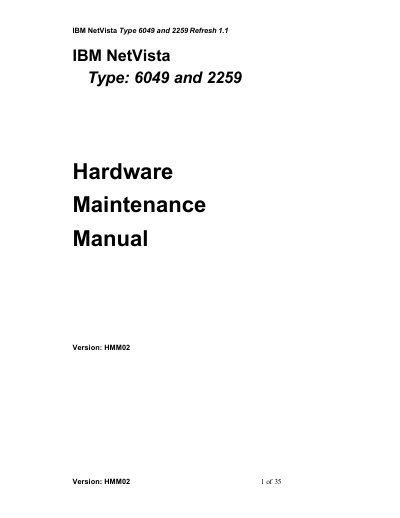

Hardware Maintenance Manual for IBM NetVista Type 6049 and 2259 Refresh 1.1 Version. It provides safety information and instructions for connecting and disconnecting cables.
This manual covers safety information for handling power, telephone, and communication cables, including detailed procedures for connecting and disconnecting cables safely. It also includes a lithium‑battery notice with the required IBM part number and handling precautions.
The document provides step‑by‑step instructions for opening the chassis, installing the power‑supply fan, assembling the mainboard, mounting the CPU and heatsink, and completing the overall system assembly. A full FRU (Field Replaceable Unit) list with part numbers for components such as CPUs, memory modules, hard drives, and optical drives is included.
| CPU Model | Intel Pentium 4 |
|---|---|
| CPU Speed | 1.5‑2.0 GHz |
| Power Supply Fan Location | Back of chassis |
Use IBM Part Number 33F8354 or an equivalent type recommended by the manufacturer.
