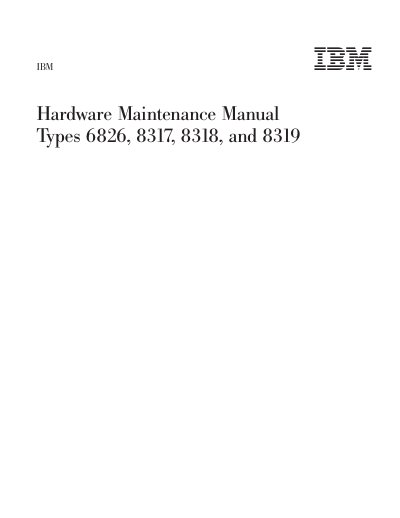

This document is the IBM Hardware Maintenance Manual for types 6826, 8317, 8318, and 8319. It provides maintenance information and important notices for these products.
This Service Manual contains detailed service and reference information for IBM computer types 6826, 8317, 8318, and 8319. It includes safety notices, general checkout procedures, diagnostic programs, and a Symptom‑to‑FRU index to help trained servicers isolate and replace faulty components.
The manual also covers installation of external and internal options, FRU removal and replacement, BIOS flash and recovery procedures, and additional service information such as power management, security features, and troubleshooting tips.
| Width | 12.2 inches (309 mm) |
|---|---|
| Height | 3.3 inches (84 mm) |
| Depth | 13.6 inches (345 mm) |
| Weight (minimum configuration) | 7.4 kg (16.2 lbs) |
| Low‑range input voltage | 90‑137 V AC |
| High‑range input voltage | 180‑265 V AC |
| Heat output (minimum configuration) | 257 Btu/hr (75 watts) |
| Heat output (maximum configuration) | 463 Btu/hr (135 watts) |
| Idle sound level (operator position) | 33 dBA |
| Operating sound level (operator position) | 38 dBA |
You must read the general information under “Notices” on page 143 before using the information and the product it supports.
