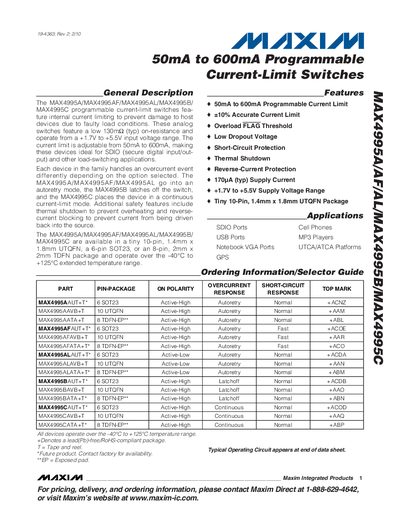

The MAX4995A/MAX4995AF/MAX4995AL/MAX4995B/MAX4995C programmable current-limit switches feature internal current limiting to prevent damage to host devices due to faulty load conditions.
The MAX4995 family (MAX4995A, AF, AL, B, C) are programmable current‑limit switches that protect host devices from over‑current conditions. They operate from a 1.7 V to 5.5 V supply, provide a selectable current limit of 50 mA to 600 mA, and feature a low 130 mΩ typical on‑resistance.
The devices are offered in three compact packages (10‑pin UTQFN, 6‑pin SOT23, 8‑pin TDFN) and operate over an extended temperature range of –40 °C to +125 °C. Different part numbers implement distinct over‑current responses: autoretry (A/AF/AL), latch‑off (B), and continuous limit (C). Integrated protections include thermal shutdown, reverse‑current protection, short‑circuit protection, and an overload flag.
| Supply Voltage Range | +1.7 V to +5.5 V |
|---|---|
| Current‑Limit Range | 50 mA to 600 mA |
| Operating Temperature Range | -40 °C to +125 °C |
