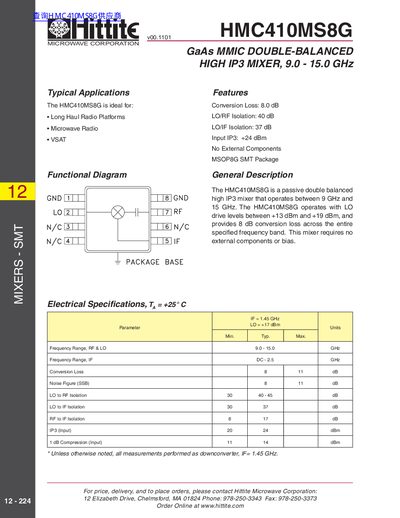

HMC410MS8G is a passive double balanced high IP3 mixer from Hittite Microwave that operates between 9 GHz and 15 GHz. It provides 8 dB conversion loss across the entire specified frequency band, with a LO drive level between +13 dBm and +19 dBm. This mixer requires no external components or bias.
The HMC410MS8G is a passive double‑balanced mixer that operates from 9.0 GHz to 15.0 GHz. It works with LO drive levels between +13 dBm and +19 dBm, provides about 8 dB conversion loss across the band, and requires no external components or bias.
The device is supplied in an MSOP8G SMT package with a pinout that includes RF, LO, IF and ground pins. Absolute maximum ratings include +20 dBm RF/IF input and +27 dBm LO drive. An evaluation PCB is available, and the part is intended for long‑haul radio, microwave radio and VSAT applications.
| Frequency Range (RF & LO) | 9.0 - 15.0 GHz |
|---|---|
| IF Frequency Range | DC - 25 GHz |
| Conversion Loss | 8.0 dB |
| LO/PF Isolation | 40 dB |
| LO/IF Isolation | 37 dB |
| Input IP3 | +24 dBm |
| Noise Figure (SSB) | 8 dB |
| LO Drive Range | +13 dBm to +19 dBm |
| 1 dB Compression (Input) | 14 dBm |
| Maximum RF/IF Input Power | +20 dBm |
| Maximum LO Drive Power | +27 dBm |
| Storage Temperature | -65 to +150 °C |
| Operating Temperature | -40 to +85 °C |
| Package | MSOP8G SMT |
The mixer operates from 9.0 GHz to 15.0 GHz.
It works with LO drive levels between +13 dBm and +19 dBm.
No, the mixer requires no external components or bias.
The maximum allowed RF/IF input power is +20 dBm.
