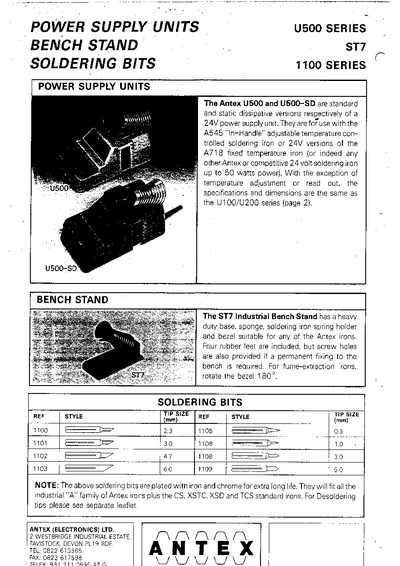

The Antex U500 and U500‑SD are 24 V power supply units designed for the A545 “In‑Handle” adjustable temperature soldering iron, the 24 V versions of the A718 fixed temperature iron, or any other 24 V soldering iron up to 50 W. Both the standard and static‑dissipative versions share the same specifications and dimensions as the earlier U100/U200 series.
The ST7 Industrial Bench Stand offers a heavy‑duty base, sponge, spring holder and bezel suitable for any Antex iron, with four rubber feet and optional mounting holes. The 1100 series soldering bits are plated with iron and chrome for long life and fit all industrial “A” family Antex irons as well as CS, XSTC, XSD and TCS models.
| Output Voltage | 24 V |
|---|---|
| Maximum Power | 50 W |
| Versions | Standard (U500) and static‑dissipative (U500‑SD) |
It provides a 24 V output.
The bits fit all industrial “A” family Antex irons plus the CS, XSTC, XSD and TCS models.
It has a heavy‑duty base, sponge, spring holder and bezel, with rubber feet and optional mounting holes.
