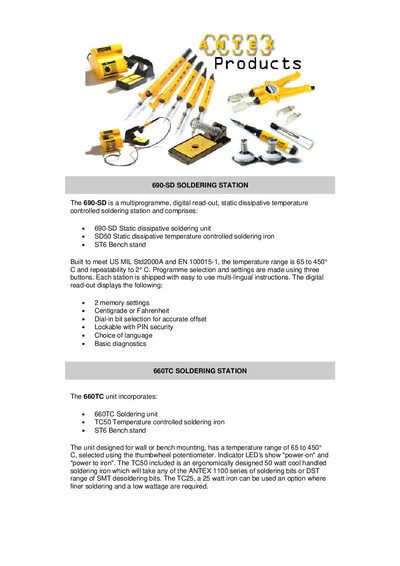

The 690-SD is a multiprogramme, digital read-out, static dissipative temperature controlled soldering station. It is built to meet US MIL Std2000A and EN 100015-1, with a temperature range of 65 to 450° C and repeatability to 2° C. The station has 2 memory settings, can display temperature in Centigrade or Fahrenheit, has dial-in bit selection for accurate offset, is lockable with PIN security, and offers a choice of language and basic diagnostics.
The 690‑SD is a multiprogram, digital read‑out, static‑dissipative temperature‑controlled soldering station. It offers a temperature range of 65 °C to 450 °C, two memory settings, centigrade or Fahrenheit display, PIN‑locked security, and basic diagnostics. The unit includes a static‑dissipative soldering iron, a bench stand, and multilingual instructions.
The accompanying specifications list input voltages, output power, sensor type, and other key parameters for both the 690‑SD and the related 660TC model. The leaflet also describes the optional surface‑mount rework kit, which provides a range of desoldering tools and an ESD‑safe 50 W soldering iron.
| Input voltage (690‑SD) | 230 V, 100/115 V |
|---|---|
| Output to iron (690‑SD) | 24 V, 50 W |
| Element construction | Wound Ceramic |
| Sensor type | Thermocouple PTCR |
| Tip‑to‑earth continuity | Yes |
| Leakage current | 20 µA |
| Accuracy | ±5 °C |
| Bit type fitted | 1100 |
The temperature range is 65 °C to 450 °C.
It provides 2 memory settings.
The station uses a Thermocouple PTCR sensor.
