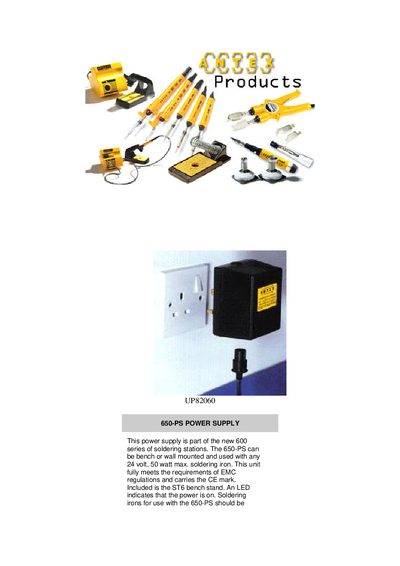

The UP82060 650-PS power supply is part of the new 600 series of soldering stations. It can be mounted on a bench or wall and used with any 24 volt, 50 watt maximum soldering iron. This unit complies with EMC regulations and has the CE mark. The package includes the ST6 bench stand and an LED indicator to show that the power is on. Soldering irons for use with the 650-PS should be ordered complete with PSU plug. The Energy Regulator allows a standard soldering iron (up to 200 watts) to be used for applications that require lower temperatures, such as wax painting, dental molding, plastics etching, and document preservation. It can control down to approximately 100°C depending on the model of the iron. The ANTEX Energy Regulator is designed for use with any 230 volt ANTEX soldering irons with a maximum of 200 watts. The soldering iron is connected to the Energy Regulator instead of a normal mains plug. The Plug-in power supply unit offers a cost-effective solution for providing 24 volts for soldering. It can be plugged directly into a standard mains socket, freeing up valuable bench space. Furthermore
The UP82060 650‑PS power supply is part of ANTEX's 600 series soldering stations. It can be bench or wall mounted and works with any 24 V, up to 50 W soldering iron. The unit meets EMC regulations and carries the CE mark.
Two functional blocks are offered: an Energy Regulator that can lower tip temperature to about 100 °C for low‑heat applications, and a low‑cost plug‑in power supply unit that provides a 24 V output via a male 3‑pin Bulgin socket. The plug‑in design eliminates trailing leads and saves bench space.
| Output voltage | 24 V |
|---|---|
| Maximum power rating (plug‑in unit) | 25 W |
| Compatible iron power | up to 200 W |
| Minimum temperature control (Energy Regulator) | ≈100 °C |
| Input voltage | 230 V AC |
It provides a 24 V output for soldering irons.
The unit is rated for a maximum of 25 W.
Yes, it can reduce the temperature to about 100 °C for low‑heat applications.
Yes, it fully meets EMC regulations and carries the CE mark.
