Solderpot Max is a 90W, 230V solder pot suitable for tinning component leads, wires, tags etc.
The ANTEX Solderpot Max is a bench‑mounted soldering pot designed for tinning component leads, wires, tags and similar tasks. It features a ceramic and nylon base with a detachable tray that captures excess dross during cleaning.

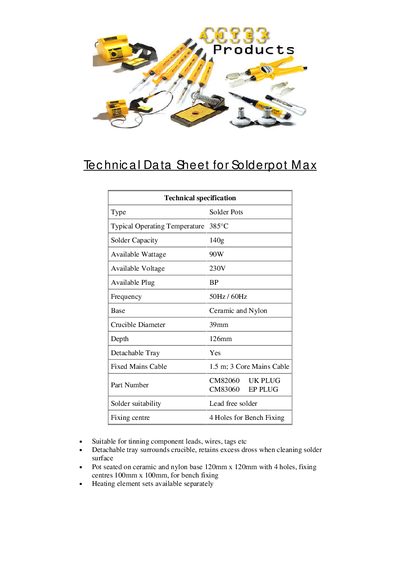

The data sheet provides key specifications such as a typical operating temperature of 385 °C, a solder capacity of 140 g, 90 W power consumption at 230 V, and a crucible measuring 39 mm in diameter and 126 mm deep. The unit includes a fixed 1.5 m three‑core mains cable and optional UK or EP plugs.
| Typical Operating Temperature | 385°C |
|---|---|
| Solder Capacity | 140g |
| Available Wattage | 90W |
| Available Voltage | 230V |
| Frequency | 50Hz / 60Hz |
| Base Material | Ceramic and Nylon |
| Crucible Diameter | 39mm |
| Crucible Depth | 126mm |
| Detachable Tray | Yes |
| Fixed Mains Cable | 1.5 m; 3 Core |
| Solder Suitability | Lead free solder |
| Fixing Centre | 4 Holes for Bench Fixing |
The typical operating temperature is 385 °C.
It can hold up to 140 g of solder.
It operates on 230 V mains power.
Yes, it includes a detachable tray.
