The document describes a power supply product with a maximum output power of 40 Watts, featuring high accuracy and adjustable voltage outputs, as well as good line and load regulation performance.

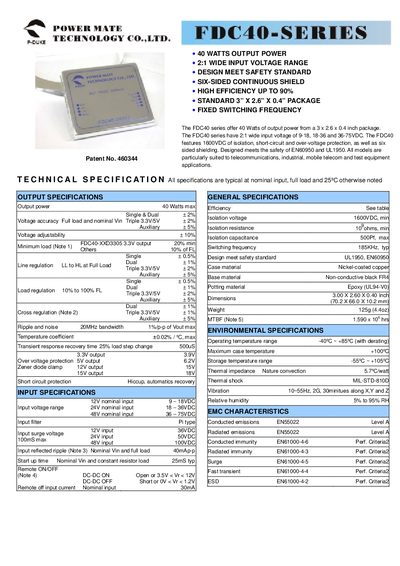

The FDC40 series from Power Mate provides 40 W of output power in a compact 3 × 2.6 × 0.4 in package. It supports a 2:1 wide input voltage range (9‑18 V, 18‑36 V, 36‑75 V) and meets EN60950 and UL1950 safety standards, with 1600 VDC isolation, short‑circuit and over‑voltage protection, and six‑sided shielding.
Technical specifications include up to 90 % efficiency, a typical switching frequency of 185 kHz, MTBF of 1.59 × 10⁵ h, and operation from –40 °C to +85 °C. The series offers multiple output configurations (single, dual, triple) with external trimming, synchronization options, and ON/OFF control pins for flexible system integration.
| Output power | 40 W |
|---|---|
| Efficiency | up to 90 % |
| Input voltage range | 9‑18 VDC, 18‑36 VDC, 36‑75 VDC |
| Isolation voltage | 1600 VDC |
| Switching frequency | 185 kHz (typ) |
| Operating temperature range | -40 °C to +85 °C |
| MTBF | 1.59 × 10⁵ h |
The series provides up to 40 W of output power.
It accepts 9‑18 VDC, 18‑36 VDC, and 36‑75 VDC input ranges.
It is designed to meet EN60950 and UL1950 safety standards.
The typical switching frequency is 185 kHz.
