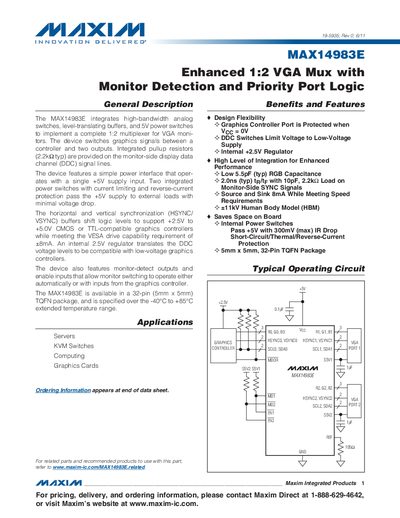

MAX14983E is a 1:2 VGA switch from Maxim Integrated. It integrates high-bandwidth analog switches, level-translating buffers, and 5V power switches to implement a complete 1:2 multiplexer for VGA monitors.
The MAX14983E is a 1:2 VGA multiplexer that switches RGB video signals, HSYNC/VSYNC, DDC, and provides two +5 V power switches with current limiting and reverse‑current protection. Integrated pull‑up resistors on the DDC lines and an internal 2.5 V regulator enable compatibility with low‑voltage graphics controllers, while monitor‑detect outputs allow automatic or controller‑driven switching.
The device is supplied in a 32‑pin TQFN‑EP package and operates from a single +5 V supply over a –40 °C to +85 °C temperature range. Electrical specifications include up to 50 mA continuous current per RGB switch, 0.3 V voltage drop on the 5 V switches at 55 mA, bandwidth of 500‑800 MHz, and ESD protection of 11 kV (HBM) on monitor‑detect pins and 2 kV on all other pins.
| Package | 32‑pin TQFN‑EP |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Continuous Current Through RGB Switches | +50 mA |
Each RGB switch can carry up to 50 mA continuously.
It is offered in a 32‑pin TQFN‑EP package.
The device operates from –40 °C to +85 °C.
