Provide high voltage switching for ultrasonic imaging and printer applications.

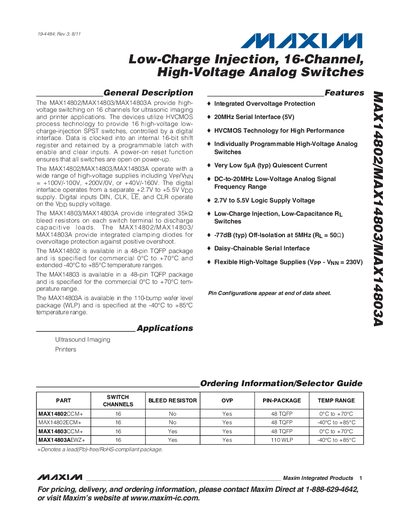

The MAX14802, MAX14803 and MAX14803A provide 16 high‑voltage low‑charge‑injection SPST switches for ultrasonic imaging and printer applications. They use HVCMOS technology and are controlled via a digital serial interface with a 16‑bit shift register and programmable latch.
Key specifications include a wide high‑voltage supply range (up to +100 V/‑100 V, +200 V/0 V, or +40 V/‑160 V), a logic supply of +2.7 V to +5.5 V, typical quiescent current of 5 µA, and on‑resistance as low as 20 Ω. Packages are offered in 48‑pin TQFP (commercial and extended temperature ranges) and a 110‑bump wafer‑level package for the MAX14803A.
| Number of channels | 16 |
|---|---|
| High‑voltage supply range | +100 V/‑100 V, +200 V/0 V, or +40 V/‑160 V |
| Logic supply voltage | +2.7 V to +5.5 V |
| Quiescent current | 5 µA typical |
| On‑Resistance (typical) | 20 Ω at Vpp=+100 V, VNN=-100 V |
| Turn‑On Time | 2 µs typical |
| Turn‑Off Time | 2 µs typical |
| Operating temperature range | -40 °C to +85 °C (extended) |
Each device provides 16 high‑voltage SPST switches.
The devices operate with Vpp/VNN up to +100 V/‑100 V, +200 V/0 V, or +40 V/‑160 V.
Typical quiescent current is 5 µA.
The MAX14803A is offered in a 110‑bump wafer‑level package (WLP).
