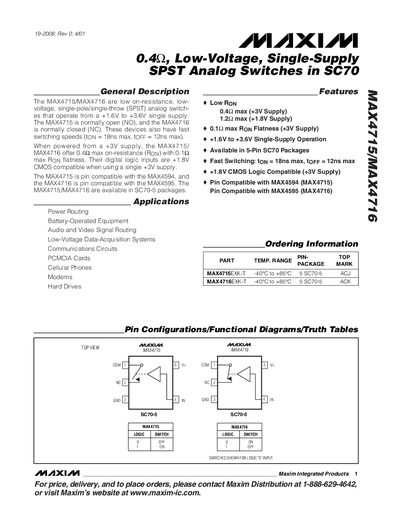

The MAX4715/MAX4716 are low on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.6V to +3.6V single supply. The MAX4715 is normally open (NO), and the MAX4716 is normally closed (NC). These devices also have fast switching speeds (tON = 18ns max, tOFF = 12ns max). When powered from a +3V supply, the MAX4715/MAX4716 offer 0.4Ω max on-resistance (RON) with 0.1Ω max RON flatness. Their digital logic inputs are +1.8V CMOS compatible when using a single +3V supply. The MAX4715 is pin compatible with the MAX4594, and the MAX4716 is pin compatible with the MAX4595. The MAX4715/MAX4716 are available in SC70-5 packages.
The MAX4715 and MAX4716 are low‑on‑resistance, low‑voltage, single‑pole/single‑throw (SPST) analog switches that operate from a +1.6 V to +3.6 V single supply. The MAX4715 is normally open (NO) and the MAX4716 is normally closed (NC). They feature fast switching speeds (turn‑on 18 ns max, turn‑off 12 ns max) and CMOS‑compatible logic inputs.
These devices are supplied in a 5‑pin SC70‑5 package and are suitable for battery‑operated equipment, audio/video signal routing, low‑voltage data‑acquisition systems, and communications circuits. Detailed electrical characteristics, absolute maximum ratings, and typical operating curves are provided in the datasheet.
| Supply Voltage Range | 1.6 V to 3.6 V |
|---|---|
| Turn‑On Time | 18 ns max |
| Turn‑Off Time | 12 ns max |
| Input Voltage High (VIH) | 1.4 V |
| Input Voltage Low (VIL) | 0.5 V |
| Package | 5‑pin SC70‑5 |
The devices operate from a single supply of 1.6 V to 3.6 V.
Both parts are supplied in a 5‑pin SC70‑5 surface‑mount package.
