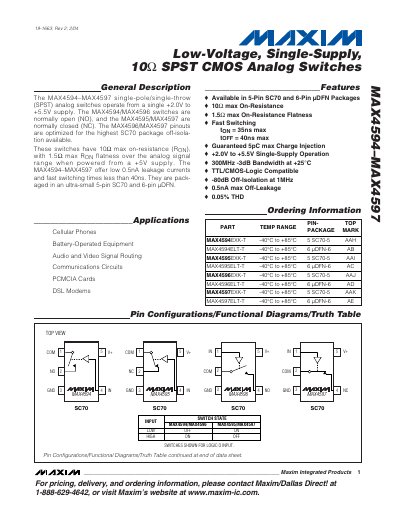

MAX4594-MAX4597 Low-Voltage, Single-Supply, 10 Ohm SPST CMOS Analog Switches
The MAX4594–MAX4597 family are single‑pole/single‑throw (SPST) analog switches that operate from a single +2.0 V to +5.5 V supply. MAX4594/MAX4596 are normally‑open (NO) devices, while MAX4595/MAX4597 are normally‑closed (NC). They are offered in ultra‑small 5‑pin SC70 and 6‑pin µDFN packages.
These switches feature a maximum on‑resistance of 10 Ω, leakage currents as low as 0.5 nA, and fast turn‑on/turn‑off times (tON ≤ 35 ns, tOFF ≤ 40 ns). They are rated for –40 °C to +85 °C operation and are suitable for cellular phones, battery‑operated equipment, audio/video routing, communications circuits, PCMCIA cards, and DSL modems.
| Supply Voltage Range | +2.0 V to +5.5 V |
|---|---|
| On‑Resistance (RON) | 10 Ω max |
| On‑Resistance Flatness | 1.5 Ω max variation |
| Leakage Current | 0.5 nA max |
| Turn‑On Time (tON) | ≤ 35 ns |
| Turn‑Off Time (tOFF) | ≤ 40 ns |
| Package Types | 5‑pin SC70, 6‑pin µDFN |
| Bandwidth | 300 MHz (–3 dB) at +25 °C |
They operate from a single +2.0 V to +5.5 V supply.
The maximum on‑resistance is 10 Ω.
Turn‑on time is up to 35 ns and turn‑off time up to 40 ns.
They are offered in 5‑pin SC70 and 6‑pin µDFN packages.
