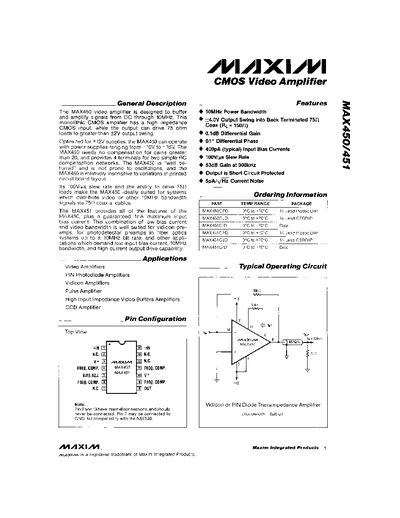

The Maxim MAX450/451 CMOS video amplifiers provide high‑impedance input buffering and up to 10 MHz bandwidth. They operate from +10 V to –15 V supplies, deliver a +4 V output swing into 75 Ω loads and feature a 100 V/µs slew rate.
The document includes absolute maximum ratings, electrical characteristics, recommended compensation networks, power dissipation details and typical application circuits for video, PIN photodiode and vidicon amplification.
| Bandwidth | 10 MHz |
|---|---|
| Input Bias Current | 400 pA (typical) |
| Slew Rate | 100 V/µs |
| Gain at 300 kHz | 53 dB |
| Typical Power Dissipation | 600 mW |
| Operating Supply | +12 V (optimized) |
The typical input bias current is 400 pA.
Typical power dissipation is about 600 mW.
The amplifier provides a 10 MHz bandwidth.
