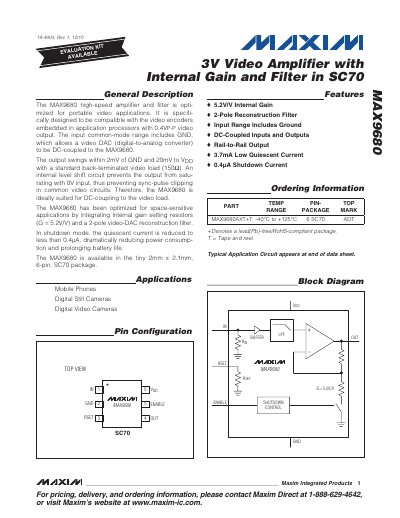

The MAX9680 is a 3V video amplifier with internal gain and filter in SC70, optimized for portable video applications.
The MAX9680 is a 3 V video amplifier that integrates a 5.2 V/V internal gain and a 2‑pole reconstruction filter, optimized for portable video applications such as mobile phones and digital cameras. It operates from a single supply (2.7 V‑3.6 V) and provides rail‑to‑rail output swing with low quiescent current, making it suitable for battery‑powered devices.
The device is offered in a tiny 2 mm × 2.1 mm 6‑pin SC70 package and includes features such as DC‑coupled inputs, short‑circuit protection, and a shutdown mode that reduces current to 0.4 µA. Detailed electrical characteristics, pin descriptions, and application guidelines are provided for designers. This manual is written in Chinese.
| Internal Gain | 5.2 V/V |
|---|---|
| Supply Voltage Range | -0.3 V to +4 V |
| Output Swing | 2 mV to GND, 20 mV to VDD |
| Package Type | 6‑pin SC70 (2 mm × 2.1 mm) |
The MAX9680 provides an internal gain of 5.2 V/V.
It is supplied in a 6‑pin SC70 package measuring 2 mm × 2.1 mm.
The recommended supply voltage range is 2.7 V to 3.6 V (absolute max -0.3 V to +4 V).
