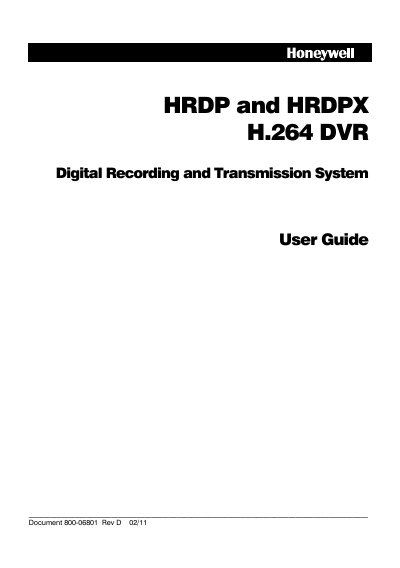

this manual describes the functions and operation methods of xt hrdp and hrdpx h.264 dvr digital recording and transmission system.
This guide explains how to install, operate and maintain the Honeywell HRDP and HRDPX H.264 DVR systems. It includes safety warnings, handling instructions, power‑source requirements, ventilation, moisture protection and rack‑mount considerations, as well as detailed steps for connecting video inputs and configuring recording settings.
The manual also lists the technical specifications such as video input channels, power requirements, dimensions, weight and recording performance. A troubleshooting section helps resolve common issues like loss of power, no live video, or full hard‑disk conditions.
| Video Inputs | 16 channels |
|---|---|
| Composite Outputs | 16 channels |
| Input Voltage | 110-230V ~ 47/63Hz |
| Power Consumption | 1.75‑0.85 A |
| Dimensions | 15.75" W × 3.46" H × 15.75" D |
| Weight | 18 lb (8.2 kg) |
| NTSC Screen Refresh Rate | 480 fps |
Check the power‑cord connections and verify that power is present at the outlet.
Do not use the DVR in humid conditions; if condensation occurs, keep it powered for 2‑3 hours to allow the unit to warm up and evaporate moisture.
Ensure adequate ambient temperature, sufficient airflow, proper mechanical loading and reliable earthing when installing the unit in a rack.
