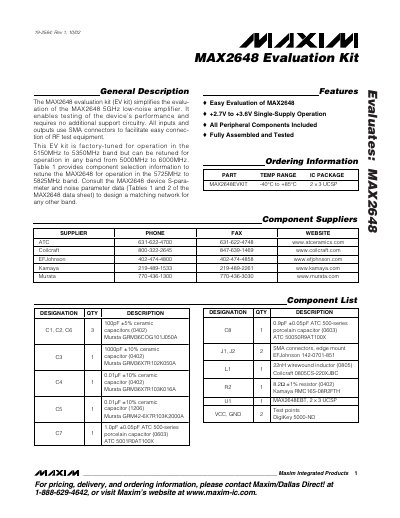

The MAX2648 evaluation kit (EV kit) simplifies the evaluation of the MAX2648 5GHz low-noise amplifier. It enables testing of the device’s performance and requires no additional support circuitry. All inputs and outputs use SMA connectors to facilitate easy connection of RF test.
The MAX2648 Evaluation Kit simplifies evaluation of the MAX2648 5 GHz low‑noise amplifier. All inputs and outputs use SMA connectors, and the kit is factory‑tuned for the 5150 MHz‑to‑5350 MHz band, but can be retuned to operate anywhere from 5000 MHz to 6000 MHz.
The manual includes a quick‑start guide, required test equipment, connection and setup procedures, and detailed instructions for handling the chip‑scale package, rework, and board layout. It also provides component lists, schematics, and PCB layout drawings.
| Frequency range (factory‑tuned) | 5150 MHz to 5350 MHz |
|---|---|
| Frequency range (re‑tunable) | 5000 MHz to 6000 MHz |
| Supply voltage | +2.7 V to +3.6 V single‑supply |
| Amplifier type | 5 GHz low‑noise amplifier |
| Typical peak gain | ≈17 dB at 5250 MHz |
The kit is factory‑tuned for 5150 MHz‑to‑5350 MHz but can be retuned to operate from 5000 MHz up to 6000 MHz.
It operates from a single‑supply voltage of +2.7 V to +3.6 V.
A DC power supply (+2.7 V to +3.6 V), an RF vector network analyzer up to 6 GHz, a calibration kit, and two high‑quality 50 Ω SMA cables.
The forward gain is about 17 dB at 5250 MHz.
