The MAX9622 op amp is a precision, high-bandwidth amplifier with rail-to-rail output and a 50MHz gain bandwidth at a supply current of just 1mA. During power-up, this device automatically calibrates its input offset voltage to less than 100FV. It operates from a single-supply voltage of 2.0V to 5.25V. The MAX9622 is available in a tiny 2mm x 2mm, 5-pin SC70 package and is rated over the -40NC to +125NC automotive temperature range.
The MAX9622 is a precision, high‑bandwidth operational amplifier offered in a 5‑pin SC70 package. It operates from a single supply of 2.0 V to 5.25 V and is rated for automotive temperature ranges (‑40 °C to +125 °C). The device features rail‑to‑rail output, low 1 mA quiescent current, and an on‑power‑up autotrim that reduces input offset voltage to less than 100 µV.

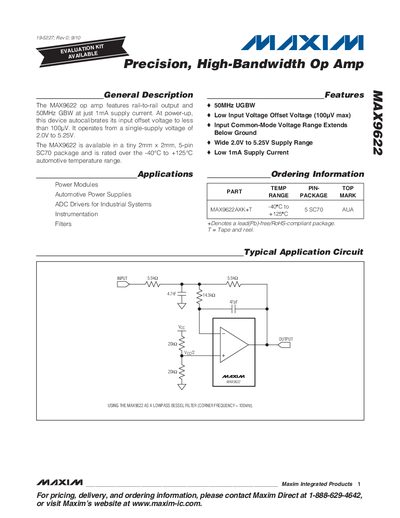

Typical applications include active filters, fast‑edge signal processing, and differential voltage protection. The datasheet provides absolute maximum ratings, detailed electrical characteristics, pin configuration, and package dimensions.
| Gain‑Bandwidth Product (GBW) | 50 MHz |
|---|---|
| Input Offset Voltage (after autocalibration) | < 100 µV |
The device has a GBW of 50 MHz.
The autotrim reduces the input offset voltage to less than 100 µV.
