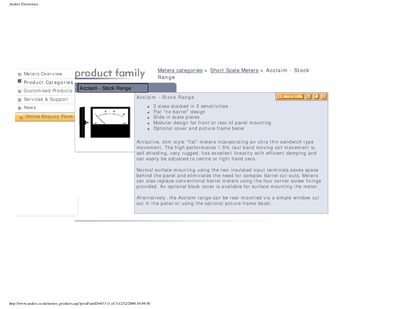

The Acclaim - Stock Range is Anders Electronics's 0-100uA DC, 0-1mA DC, 0-75mV DC current meter. This range of products features a flat “no barrel” design, can be front or rear panel mounted, and has adjustable center or right hand zero, as well as optional covers and picture frame bezels.
The Acclaim range from Anders Electronics offers ultra‑thin “flat” panel meters with a sandwich‑type taut‑band moving‑coil movement. Three sizes are stocked in three sensitivities, providing 1.5% linearity and rugged construction that can survive 200 G shock.
Meters can be surface‑mounted using two insulated input terminals, or rear‑mounted via a simple window cut‑out or an optional picture‑frame bezel. Optional black covers and bezels are available for both front and rear mounting configurations.
| Movement linearity | 1.5% |
|---|---|
| Shock resistance | 200 G |
| Case size (AM25) | 78 × 60 mm |
| Scale length (AM25) | 45 mm |
| Case size (AM35) | 95.5 × 75 mm |
| Scale length (AM35) | 65 mm |
| Mounting method | Surface or rear mounting |
| Design style | Flat, barrel‑less case |
Three sizes are stocked in three different sensitivities.
The movement provides 1.5% linearity.
Yes, the meters are designed to survive up to 200 G shock.
