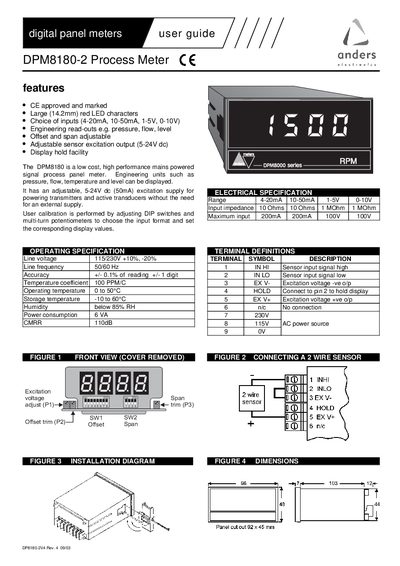

The DPM8180 is a low cost, high performance mains powered signal process panel meter from anders meters. Engineering units such as pressure, flow, temperature and level can be displayed. It has an adjustable, 5-24V dc (50mA) excitation supply for powering transmitters and active transducers without the need for an external supply. User calibration is performed by adjusting DIP switches and multi-turn potentiometers to choose the input format and set the corresponding display values.
The DPM8180-2 is a low‑cost, mains‑powered process panel meter that can display engineering units such as pressure, flow, temperature and level. It offers large red LED characters, selectable input ranges (4‑20 mA, 10‑50 mA, 1‑5 V, 0‑10 V), adjustable sensor excitation (5‑24 V dc), and offset/span adjustment.
The manual provides step‑by‑step instructions for removing the instrument, selecting input formats, setting display range and decimal point, calibrating offset and span, and installing the meter in a panel. Wiring diagrams, terminal definitions, and dimension drawings are included to aid proper connection and mounting.
| Input range | 4‑20 mA, 10‑50 mA, 1‑5 V, 0‑10 V |
|---|---|
| Input impedance | 10 Ω / 1 MΩ (depending on range) |
| Maximum input current | 200 mA |
| Accuracy | ±0.1 % of reading ±1 digit |
| Temperature coefficient | 100 ppm/°C |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -10 °C to 60 °C |
| Humidity range | up to 85 % RH |
| Power consumption | 6 VA |
| CMRR | 110 dB |
| Line voltage | 115 V / 230 V AC |
| Line frequency | 50 Hz / 60 Hz |
It supports 4‑20 mA, 10‑50 mA, 1‑5 V and 0‑10 V input signals.
The meter consumes 6 VA.
The meter operates from 0 °C to 50 °C.
