User's Manual
This manual covers the features and layout of the Biostar T Force 6100 series motherboards, including CPU socket options, supported processors, memory configurations, and onboard components such as the NVIDIA GeForce 6100 north bridge and nForce 410 south bridge.

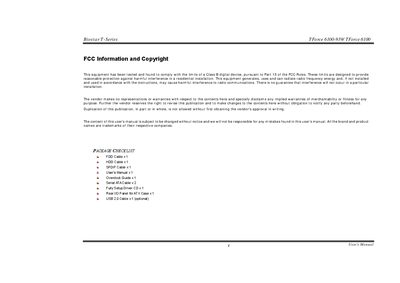

Detailed sections guide users through hardware installation steps (CPU, DDR modules, fans), connector pin assignments, BIOS updates, and troubleshooting tips, with multilingual support notices and a package checklist of included accessories.
| CPU sockets | Socket 939, Socket 754 |
|---|---|
| Supported CPUs | AMD Athlon 64 FX / Athlon 64 / Athlon 64 X2, AMD Sempron, AMD Athlon 64 (Socket 754) |
| Chipset | North Bridge: NVIDIA GeForce 6100, South Bridge: NVIDIA nForce 410 |
| Memory type | DDR 266/333/400, Dual‑channel |
| Maximum memory | 4 GB (T Force 6100‑939), 2 GB (T Force 6100) |
| Form factor | Micro ATX 24.5 cm × 24.45 cm (939), 21.86 cm × 24.4 cm (754) |
| SATA ports | 2 SATA II (3 Gb/s) ports |
| USB ports | 4 USB 2.0 ports on back panel |
| PCI‑Express slots | 1 × PCI‑Express x1, 1 × PCI‑Express x16 |
| Audio codec | Realtek ALC655, 6‑channel output |
| LAN PHY | RTL8201BL/RTL8201CL (10/100 Mbps) |
The motherboard supports both Socket 939 and Socket 754.
There are four USB 2.0 ports on the rear I/O panel.
The T Force 6100‑939 can accommodate up to 4 GB of DDR memory across four DIMM slots.
It uses the Realtek ALC655 codec, providing six‑channel audio output.
