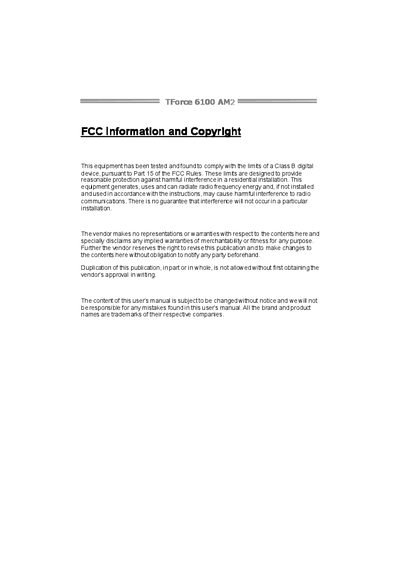

This document is about the information and copyright statement of TForce 6100 AM2222 motherboard. The motherboard complies with the limits of FCC rules, providing reasonable protection against harmful interference in residential installations. The motherboard has the ability to generate, use, and radiate radio frequency energy, which may cause harmful interference to radio communications if not installed and used according to the instructions. The document also states the vendor's rights to retain and modify the content, and prohibits duplication of this publication without prior written approval from the vendor. Furthermore, the content of this user's manual is subject to change and we are not responsible for any mistakes found in this user's manual. All brand and product names are trademarks of their respective companies.
This manual covers safety notices, FCC compliance, and detailed installation steps for the TForce 6100 AM2 motherboard. It includes instructions for handling static electricity, connecting power supplies, and mounting the board in an ATX case.
The guide also describes BIOS features, supported CPUs, memory configurations, expansion slots, and peripheral connectors. Reference tables list the layout of front and rear panel connectors, supported RAID modes, and integrated audio and networking capabilities.
| CPU Socket | Socket AM2 |
|---|---|
| Supported CPUs | AMD Athlon 64 FX / Sempron |
| Front Side Bus | 1000 MHz (HyperTransport) |
| Integrated Graphics | GeForce 6100 / nForce 410 |
| Memory Slots | 4 DIMM slots, DDR2, up to 1 GB per module |
| Maximum Memory Capacity | 4 GB |
| SATA Interface | SATA 2.0 (supports RAID 0 and RAID 1) |
| LAN | 10/100/1000 Mbps Ethernet |
| Audio | 8‑channel AC97 (6‑channel optional) |
| PCI Express Slots | PCI‑Express x16, x1, and x1 |
| USB Ports | Rear panel: 4 USB 2.0; Front panel: 2 USB 2.0 |
The rear panel provides four USB 2.0 ports.
It supports DDR2 memory with four DIMM slots, up to 1 GB per module and a total of 4 GB.
The board is compatible with AMD Athlon 64 FX and Sempron processors using the AM2 socket.
Yes, the SATA controller supports RAID 0 and RAID 1.
