The AD8215 is a high voltage, precision current shunt monitor. It features a set gain of 20 V/V, with a maximum ±0.3% gain error over the entire temperature range.
The AD8215 is a high‑voltage, precision current shunt monitor that provides a fixed gain of 20 V/V and a buffered output suitable for automotive and industrial applications. It operates over a wide common‑mode voltage range (‑2 V to +65 V) and an extended temperature range from –40 °C to +125 °C.

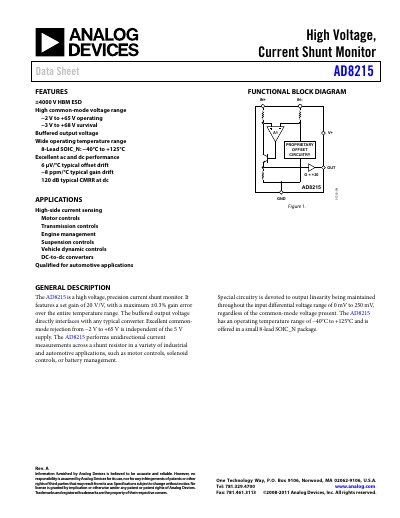

The datasheet includes detailed specifications, pin descriptions, typical performance curves, and ordering information for both commercial and automotive‑qualified package options. It also provides application notes for high‑side and low‑side current‑sensing configurations.
| Gain | 20 V/V |
|---|---|
| Gain Accuracy | ±0.15 % |
| Input Common‑Mode Voltage Range | ‑2 V to +65 V |
| Operating Temperature Range | ‑40 °C to +125 °C |
| Supply Voltage Operating Range | 4.5 V to 5.5 V |
| Quiescent Current (TA) | 1.3 mA to 2.2 mA |
| Output Voltage Range (Low) | 0.03 V |
| Output Voltage Range (High) | 4.95 V |
The AD8215 provides a fixed gain of 20 V/V.
The device accepts a common‑mode voltage from –2 V to +65 V.
It operates from –40 °C up to +125 °C.
