Bosch 14.4V 2-speed brushless electric screwdriver GSR 14.4VE-2 High-performance motor, 2-speed planetary gearbox, metal gears, high speed, long endurance

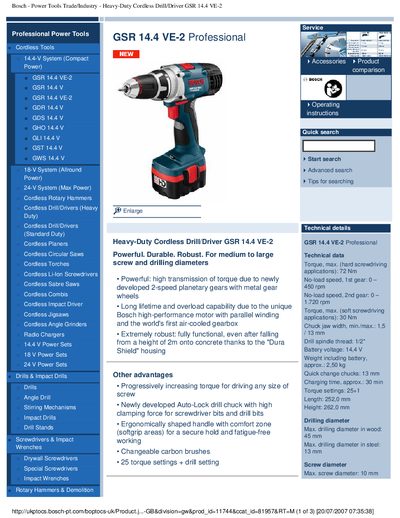

The manual introduces the Bosch GSR 14.4 VE-2 Professional, a heavy‑duty cordless drill/driver designed for medium to large screw and drilling diameters. It highlights key features such as a 2‑speed planetary gear system, high‑performance motor, air‑cooled gearbox, and robust Dura Shield housing.
Technical data and specifications are listed, including torque values, speed ranges, battery voltage, dimensions, weight, and recommended accessories. The document also explains how to download the full operating instructions and provides service and accessory information.
| Maximum torque (hard screwdriving) | 72 Nm |
|---|---|
| No‑load speed, 1st gear | 0‑450 rpm |
| No‑load speed, 2nd gear | 0‑1,720 rpm |
| Maximum torque (soft screwdriving) | 30 Nm |
| Chuck jaw width | 1.5‑13 mm |
| Battery voltage | 14.4 V |
| Weight (incl. battery) | ≈ 2.50 kg |
| Charging time | ≈ 30 min |
| Torque settings | 25+1 |
| Length | 252.0 mm |
| Height | 262.0 mm |
| Maximum drilling diameter in wood | 45 mm |
| Maximum drilling diameter in steel | 13 mm |
| Maximum screw diameter | 10 mm |
The maximum torque for hard screwdriving applications is 72 Nm.
Charging the battery takes approximately 30 minutes.
The drill operates on a 14.4 V battery.
The weight including the battery is about 2.5 kg.
