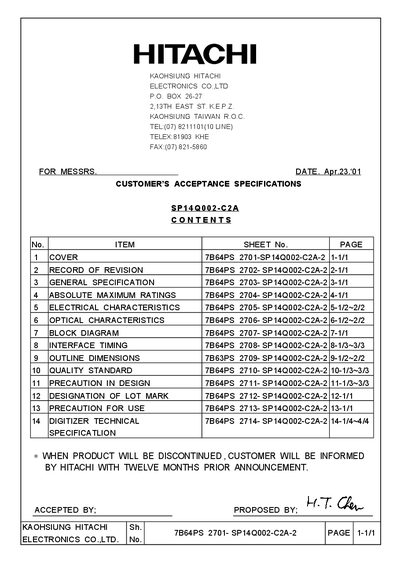

This is a customer acceptance specification which mainly introduces the product's overall specifications, absolute maximum ratings, electrical characteristics, optical characteristics, block diagram, interface timing, outline dimensions, quality standards, design precautions, lot mark, use precautions and digitizer technical specifications.
This document provides the detailed technical specifications, absolute maximum ratings, and environmental testing requirements for the Hitachi SP14Q002-C2A LCD module. It includes electrical, optical, and mechanical characteristics needed for customer acceptance.
The specifications cover display resolution, power supply limits, backlight characteristics, contrast ratio, response times, and environmental limits such as temperature, humidity, vibration, and shock. Revision history and quality standards are also listed.
| Display resolution | 320 x 240 (W x H) |
|---|---|
| Power supply voltage (logic) | 5.0 V (VDD‑VSS) |
| Backlight lamp type | Cold cathode fluorescent lamp |
| Brightness (transparency) | 76% min |
| Viewing angle | 40° |
| Maximum operating temperature | 60 °C |
The module can operate up to 60 °C.
A 5.0 V supply (VDD‑VSS) is required for the logic.
The backlight uses a cold cathode fluorescent lamp.
