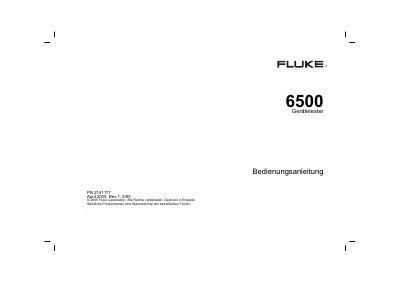

Fluke 6500 Device Tester
This manual describes the Fluke 6500 appliance tester, a handheld device for safety testing of electrical equipment according to DIN VDE 0701/0702. It covers unpacking, safety information, front‑panel description, button functions, measurement modes, automatic test sequences, data storage, and maintenance.
Technical data such as dimensions, power requirements, measurement ranges, accuracy, and environmental limits are listed, along with warranty terms and service contact information. Appendices detail the required VDE test procedures and limits. This manual is written in German.
| Dimensions | 200 mm × 275 mm × 100 mm |
|---|---|
| Weight | ≈ 3.0 kg |
| Power supply | 230 V ± 10 % – 15 %, 50 Hz ± 2 % |
| Power consumption (typical) | 13 W |
| Maximum input current | 16 A |
| IP rating | IP‑40 (enclosure), IP‑20 (connectors) |
| Resistance measurement range | 0.01 MΩ to 19.99 MΩ |
| Current measurement resolution | 0.01 mA |
| Measurement accuracy (current) | ± (5 % + 5 Digits) |
Fluke guarantees the product for 2 years from the shipping date, with a 90‑day warranty for parts, repairs and service.
Safety tests may only be carried out by qualified electrical professionals or under their supervision.
Read the safety information, ensure the tester is connected to a correctly grounded protective‑earth socket, and use only the supplied test leads.
