As the market leader in the development and manufacture of super-bright LED light engines, Lamina brings solid state lighting to applications which until now were only possible with traditional lighting sources. Lamina’s LED light engines are manufactured by combining high brightness LEDs from industry-leading LED manufacturers with Lamina's proprietary packaging technology. This technology is a breakthrough in thermal performance for LED packaging, a key factor in determining LED life and reliability. Unmatched thermal performance coupled with package interconnectivity allows Lamina to densely cluster multiple LEDs to achieve exceptionally high luminous intensity in very small footprints. Lamina’s light engines are available in white, RGB and monochrome, from 1W to 100W, and also in custom packages up to 1000W.

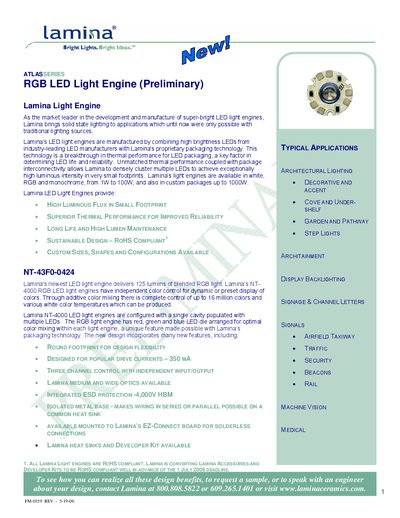

The ATLAS RGB LED Light Engine from Lamina offers high luminous flux in a compact footprint with superior thermal performance. It is available in a 125 lm RGB version (P/N NT-43F0-0424) and supports independent color control for up to 16 million colors.
The document details technical data such as wavelength, voltage, power consumption, and thermal resistance, as well as mechanical dimensions, recommended mounting methods, heat‑sink requirements, and handling precautions. It also describes the optional EZ‑Connect board for solder‑less connections and available optics for various beam patterns.
| Wavelength (Red) | 619‑629 nm |
|---|---|
| Wavelength (Green) | 515‑535 nm |
| Wavelength (Blue) | 460‑470 nm |
| Drive Voltage (Red) | 46 V |
| Test Current (Red/Green/Blue) | 0.35 A |
| Power Consumption (Red) | 1.6 W |
| Luminous Flux (Red) | 39‑52 lm |
| Thermal Resistance (Red/Green/Blue) | 3.5‑4.0 °C/W |
| Isolation Resistance (Red) | 500 kΩ |
| Operating Temperature (Junction) | -40 °C to 115 °C |
| ESD Sensitivity | HBM 4,000 V |
It is designed for popular drive currents of 350 mA.
The light engine must be operated at or below a junction temperature of 125 °C.
Yes, all Lamina light engines are RoHS compliant.
Lamina offers an EZConnect adapter board with AMP connectors for solder‑less connections.
