laminaceramics.com To see how you can realize all these design benefits, to request a sample, or to speak with an engineer about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com. Bright Lights. Bright Ideas. TM •HIGH LUMINOUS FLUX IN SMALL FOOTPRINT •SUPERIOR THERMAL PERFORMANCE FOR IMPROVED RELIABILITY •LONG LIFE AND HIGH LUMEN MAINTENANCE •NO MERCURY OR LEAD •CUSTOM SIZES AND SHAPES AVAILABLE As the market leader in the development and manufacture of super-bright LED arrays, Lamina brings solid state lighting to applications which until now were only possible with traditional lighting sources. Lamina’s LED arrays are manufactured by combining high brightness LEDs from industry-leading LED manufacturers with Lamina's proprietary packaging tech- nology, multilayer Low Temperature Co-Fired Ceramic on Metal (LTCC-M). LTCC-M is a breakthrough in thermal performance for LED packaging technology, a key factor in determining LED life and reliability. Unmatched thermal performance coupled with package interconnectivity allows Lamina to densely cluster multiple LEDs to achieve exceptionally high luminous intensity in very small footprints. Lamina’s arrays are available in white, RGB and monochrome, from 1W to 100W, and also are available in custom packages. Lamina BL-2000 white LED arrays are configured with seven cavities, each popu- lated with multiple LEDs. Multiple LED die in each cavity, a unique feature made possible with Lamina’s pack

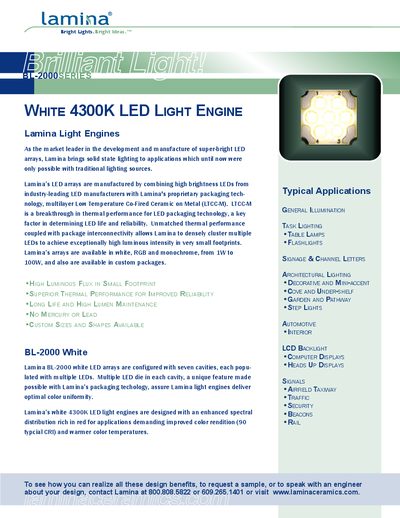

The BL-2000 series is Lamina's white 4300K LED light engine that uses proprietary LTCC‑M packaging to achieve high luminous intensity in a compact footprint. It is designed for applications such as general illumination, task lighting, signage, architectural lighting, automotive interior, and more.
The manual includes technical data, mechanical dimensions, soldering and attachment recommendations, heat‑sink design guidance, optical pattern information, and handling precautions. It also outlines ESD protection and the impact of junction temperature on light output.
| Color Temperature | 4300 K |
|---|---|
| Voltage | 2‑24 V |
| Test Current | 0.21 A |
| Power | 2‑5 W |
| Luminous Flux | 100 lm |
| Thermal Resistance | 2.63 °C/W |
| Typical CRI | 90 |
All Lamina LED arrays must be operated at or below 125 °C.
It should be attached with conductive epoxy or screwed down with thermal grease; thermal tape can be used but may increase thermal resistance.
The pads are compatible with Sn63 or Sn62 solder, and a non‑acid RMA type solder flux should be used before soldering.
The typical CRI is 90.
