High brightness LED arrays, ultra-small size, high thermal performance, long life, no mercury or lead, custom sizes and shapes available.

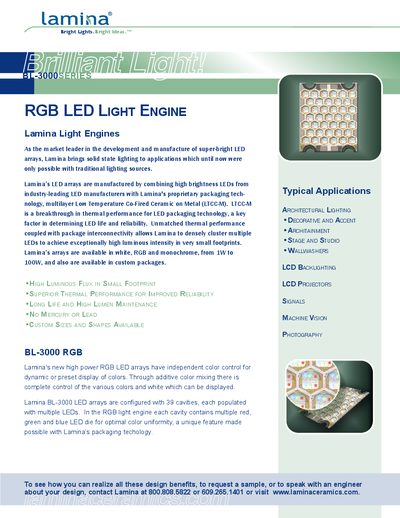

The Lamina BL-3000 RGB LED Light Engine combines high‑brightness LEDs with Lamina's proprietary LTCC‑M packaging to deliver high luminous flux in a compact footprint. The engine features 39 cavities, each containing multiple red, green and blue LED dies for uniform color mixing and independent color control.
The datasheet provides electrical parameters (voltage, current, power), optical characteristics (dominant wavelength, luminous flux), mechanical dimensions, assembly recommendations, heat‑sink design guidance, and handling precautions to ensure reliable operation up to 125 °C.
| Part Number | BL-33F0-0142 |
|---|---|
| Dominant Wavelength (Red) | 619 nm |
| Forward Voltage (Red) | 48 V |
| Test Current (Red) | 1.17 A |
| Test Current (Green/Blue) | 1.47 A |
| Power (Red) | 5.6 W |
| Luminous Flux (Red) | 218 lm |
| Thermal Resistance (All colors) | 0.66 °C/W |
| Maximum Operating Temperature | 125 °C |
| Recommended Screw Torque | 4 in‑lb (45 N·cm) |
The part number is BL‑33F0‑0142.
Use a torque of 4 in‑lb (45 N·cm) for the 6‑32 UNC fillister head screw.
The LED array must be operated at or below 125 °C.
Solder pads are compatible with Sn63 or Sn62 solder, using non‑acid RMA type flux.
