Lamina LED Light Engine provide: HIGH LUMINOUS FLUX IN SMALL FOOTPRINT, SUPERIOR THERMAL PERFORMANCE, LONG LIFE, COMPACT DESIGN.

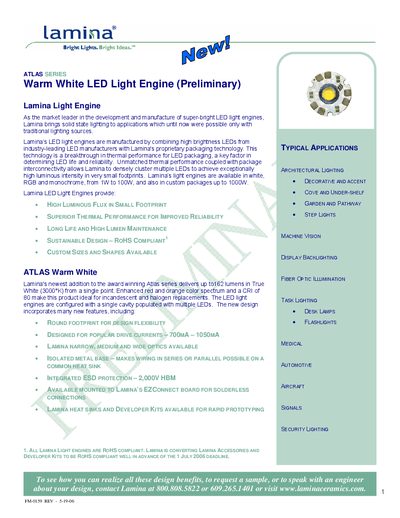

The ATLAS series Warm White LED Light Engine from Lamina provides up to 162 lm at 3000 K in a compact package. The manual covers technical specifications, recommended drive currents, and typical applications such as architectural, decorative, and machine‑vision lighting.
Installation instructions detail connections, solder‑pad preparation, mounting torque, and heat‑sink design to keep the LED junction below 125 °C. Optics options, handling precautions, and contact information for samples and engineering support are also included.
| Color Temperature (CCT) | 3050 K |
|---|---|
| Color Rendering Index (CRI) | 80 |
| Thermal Resistance (Tr) | 4.5 °C/W |
| Insulation Resistance | 1 MΩ |
| Electrical Isolation | 100 V |
| LED Junction Temperature | 125 °C |
| ESD Sensitivity | 4000 V |
| Forward Voltage (V_e) | 75.8 V |
| Power (700 mA) | 5.27 W |
| Power (1050 mA) | 8.61 W |
| Luminous Flux (700 mA) | 120 lm |
| Luminous Flux (1050 mA) | 135 lm |
| Luminous Flux (Warm White) | 162 lm |
The ATLAS light engine must be operated at or below a 125 °C die junction temperature.
First tighten each screw to about 0.89 in‑lb (10 N·cm), then to a maximum of 4 in‑lb (45 N·cm).
The engine is specified for constant‑current operation at 700 mA or 1050 mA.
Typical applications include architectural lighting, decorative and accent lighting, cove and under‑shelf lighting, garden and pathway lighting, step lights, machine vision, display backlighting, fiber‑optic illumination, task lighting, medical, automotive, aircraft, signals and security lighting.
