This document introduces a font design product, with features including grey face color, white segment color, two performance options (HE Blue and Blue), two wavelength options (HE Blue 465 nm and Blue 428 nm), suitable for various applications such as audio, instrumentation, and corporate signage, cost-effective, wide viewing angle.

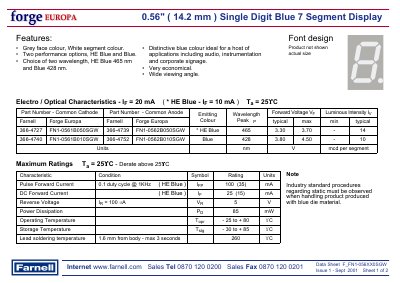

The Forge Europa F_FN1-056XX0SGW is a 0.56" (14.2 mm) single digit blue 7‑segment display with a grey face and white segments. It offers two wavelength options—HE Blue at 465 nm and Blue at 428 nm—making it suitable for audio, instrumentation and corporate signage applications. The module provides a wide viewing angle and an economical solution for various electronic displays.
Key specifications include forward voltages of 3.30 V (typical) to 3.70 V (max) for the HE Blue version and 3.80 V to 4.50 V for the Blue version, pulse forward current up to 100 mA, DC forward current up to 25 mA, reverse voltage of 5 V, and power dissipation of 85 mW. It operates from –25 °C to +80 °C, can be stored from –30 °C to +85 °C, and tolerates lead soldering at 260 °C for a maximum of 3 seconds.
| Display size | 0.56" (14.2 mm) |
|---|---|
| Face colour | Grey |
| Segment colour | White |
| Wavelength options | HE Blue 465 nm, Blue 428 nm |
| Forward voltage (HE Blue) | 3.30 V typical, 3.70 V max |
| Forward voltage (Blue) | 3.80 V typical, 4.50 V max |
| Pulse forward current (HE Blue) | 100 mA |
| DC forward current (HE Blue) | 25 mA |
| Reverse voltage | 5 V |
| Power dissipation | 85 mW |
| Operating temperature | -25 °C to +80 °C |
| Storage temperature | -30 °C to +85 °C |
| Lead soldering temperature | 260 °C max, 3 seconds |
The display offers two wavelength options: HE Blue at 465 nm and Blue at 428 nm.
The blue version has a maximum forward voltage of 4.50 V.
The display operates from –25 °C up to +80 °C.
It can be soldered for up to 3 seconds at a maximum temperature of 260 °C.
