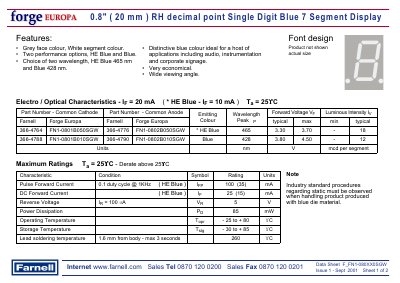

FN1-080xx0SGW is a 7-segment LED display produced by Farnell Forge Europa. Product features include gray face color, white segment color, two performance options, HE Blue and Blue, two wavelengths, HE Blue 465 nm and Blue 428 nm, distinctive blue color, ideal for a variety of applications, very economical, wide viewing angle.
The F_FN1-080XX0SGW is a 0.8" (20 mm) single‑digit blue 7‑segment display with a grey face and white segment colour. It offers two wavelength options – HE Blue (465 nm) and Blue (428 nm) – suitable for audio, instrumentation and signage applications. The device is economical, provides a wide viewing angle, and meets static‑protection standards.
Electrical specifications include forward voltage ranges of 3.30‑3.70 V (HE Blue) and 3.80‑4.50 V (Blue), a maximum forward current of 100 mA (HE Blue) and 25 mA (DC), and operating temperatures from –25 °C to +80 °C. Recommended lead‑soldering temperature is up to 260 °C for a maximum of 3 seconds. This manual is written in Chinese.
| Display size | 0.8" (20 mm) |
|---|---|
| Face colour | Grey |
| Segment colour | White |
| Wavelength options | HE Blue 465 nm, Blue 428 nm |
| Forward voltage (HE Blue) | 3.30‑3.70 V |
| Forward voltage (Blue) | 3.80‑4.50 V |
| Maximum forward current (HE Blue) | 100 mA |
| Maximum forward current (DC) | 25 mA |
| Operating temperature | -25 °C to +80 °C |
The display offers HE Blue at 465 nm and Blue at 428 nm.
The maximum forward current is 100 mA for the HE Blue option and 25 mA for DC operation.
The device can operate from –25 °C up to +80 °C.
