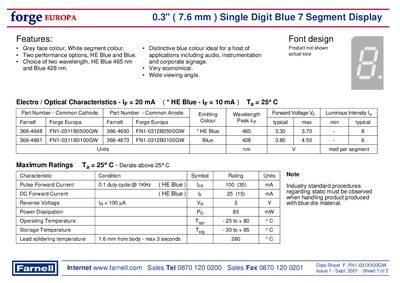

FN1-031XX00GW is a single digit blue 7 segment display produced by Farnell Forge Europa. It features grey face and white segment colors, HE Blue and Blue performance options, HE Blue 465 nm and Blue 428 nm wavelength options, and is very economical and has wide viewing angle.
The Forge EUROPA 0.3" (7.6 mm) single‑digit blue 7‑segment display is offered in two wavelength options, HE Blue (465 nm) and Blue (428 nm). It features a grey face, white segment colour and a distinctive blue colour, suitable for audio, instrumentation and corporate signage applications. The device is available in both common‑cathode and common‑anode configurations.
Key electrical characteristics include a forward voltage of 3.30‑3.70 V (HE Blue) or 3.80‑4.50 V (Blue), pulse forward current up to 100 mA, DC forward current 25 mA, reverse voltage 5 V, and power dissipation of 85 mW. The display operates from –25 °C to +80 °C, can be stored from –30 °C to +85 °C, and tolerates a lead‑soldering temperature up to 260 °C for a maximum of 3 seconds.
| Emitting Wavelength (HE Blue) | 465 nm |
|---|---|
| Emitting Wavelength (Blue) | 428 nm |
| Power Dissipation | 85 mW |
The HE Blue version emits at 465 nm.
