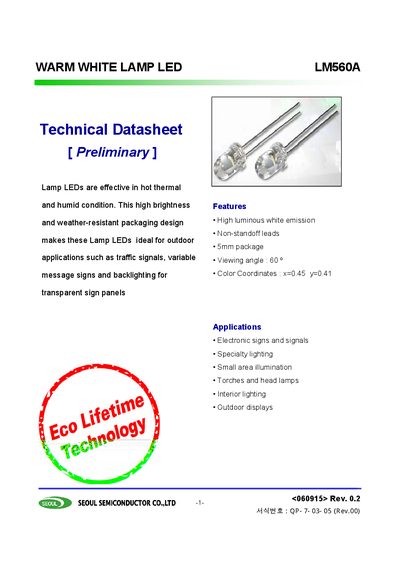

This document introduces a product called WARM WHITE LAMP LED LM560A. The product features high luminous white emission, non-standoff leads, 5mm package, and a viewing angle of 60 degrees. It is suitable for applications such as electronic signs and signals, specialty lighting, small area illumination, torches and head lamps, interior lighting, and outdoor displays.
The LM560A Warm White Lamp LED is designed for outdoor applications such as traffic signals, electronic signs, and backlighting. It offers high luminous white emission, a 60° viewing angle, and color coordinates of x=0.45, y=0.41, making it suitable for specialty lighting and torches.
The datasheet details mechanical dimensions, electro‑optical characteristics, absolute maximum ratings, reliability test results, and precautionary handling instructions. It also includes bin code tables, color rank charts, and storage recommendations to ensure reliable operation across -30 °C to 85 °C operating temperatures.
| Forward Voltage (20 mA) | 3.2‑3.8 V |
|---|---|
| Viewing Angle | 60° |
| Color Coordinates | x=0.45 y=0.41 |
| Operating Temperature | -30 °C to 85 °C |
| Power Dissipation | 114 mW |
Store the LEDs at 5 °C – 30 °C with a maximum humidity of 50 % before opening the package.
The maximum DC forward current is 30 mA, with a peak pulse current of 100 mA.
The high temperature storage test is performed at 100 °C for 1000 hours.
Use a wrist band or anti‑electrostatic glove and ensure all equipment is properly grounded.
